Energy storage and peak-shaving.

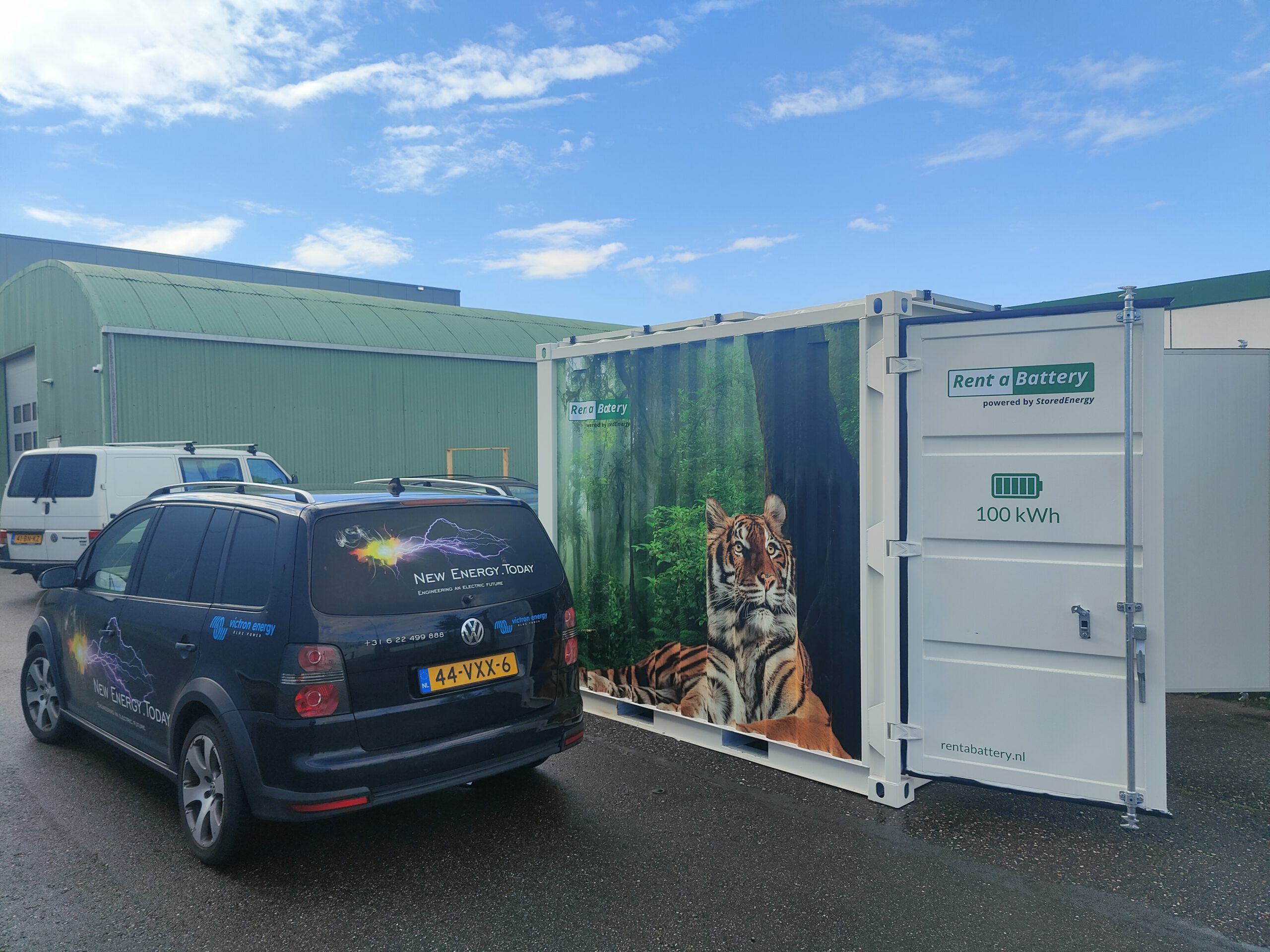

Together with Off-grid factory, we build 4 battery containers for Rent a battery.

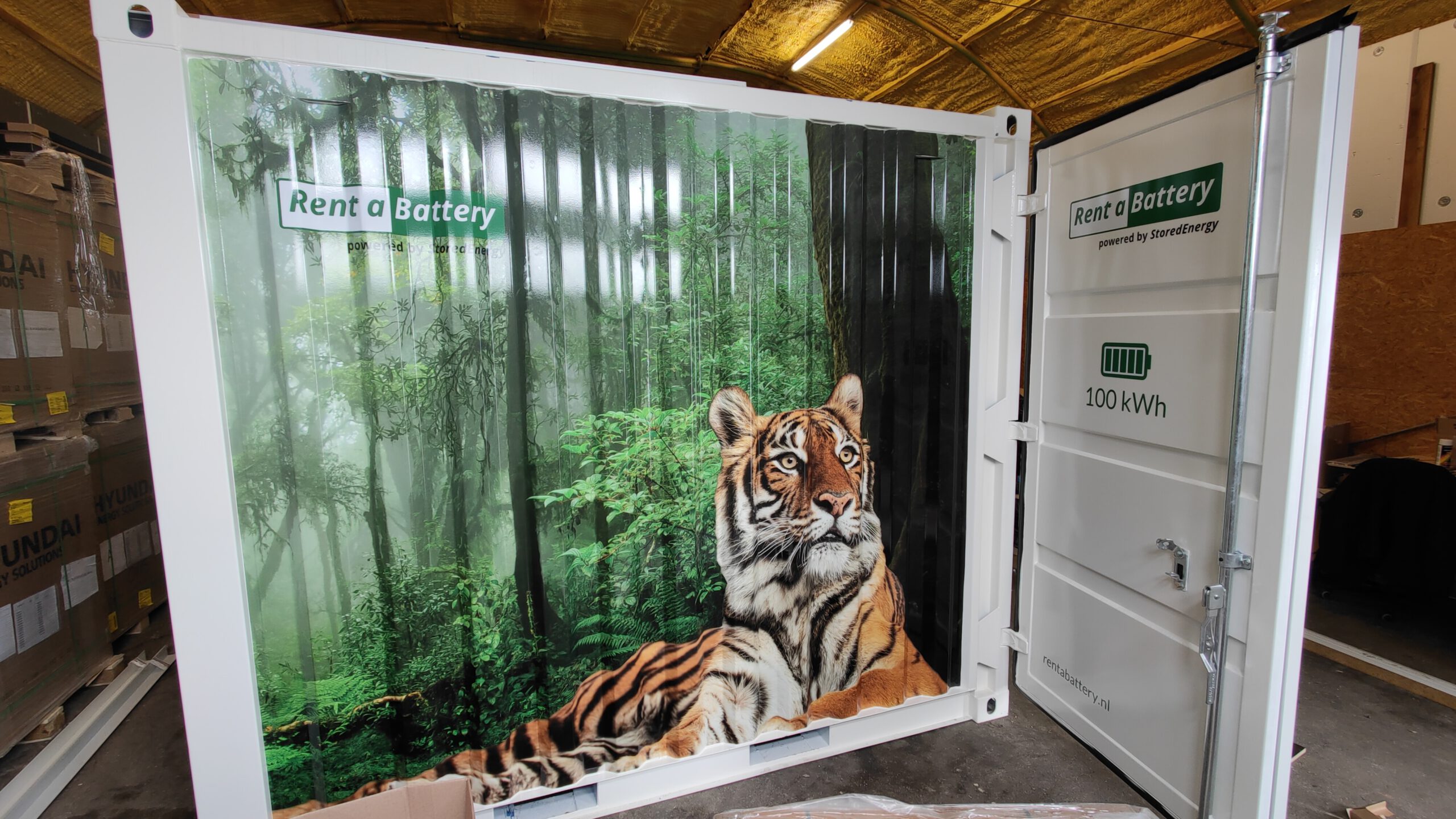

These containers, with a storage capacity of 100 kWh and 90 kW inverter power, are rented on sites where temporary extra energy is required. For instance, construction sites, events, holiday parks, etc.

Often as peak-shaving system, the container supplies power for high peaks in consumption, and thus a relatively small grid supply can be used.

But these are also used in off-grid situations as energy storage systems. One example is in combination with a diesel generator. the generator only runs to charge the batteries. on a construction site, for example, a lot of power is needed during the day and the diesel generator only kicks-in when the batteries are low. It runs at nominal power and during a relatively short time. At night, the batteries supply the power for the lights on site.

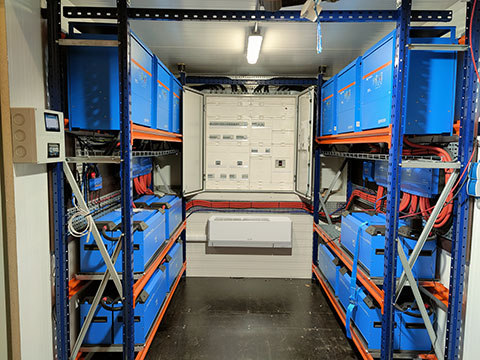

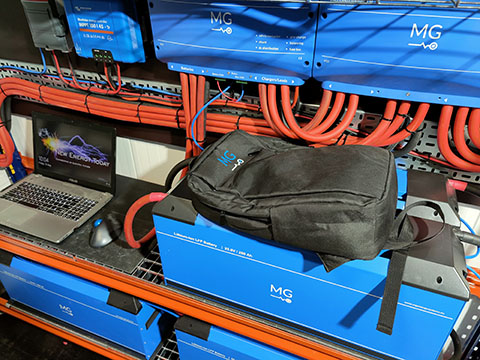

The batteries and battery management are supplied by MG Energy.

The charger/inverters by Victron and a Victron Cerbo controls and monitors the unit.

The system is remote controlled by a 4G router.

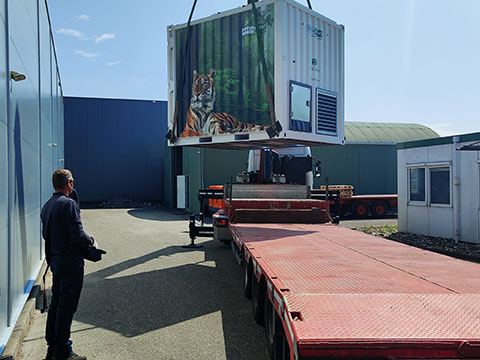

On its way!

We do this project in close collaboration with the employer:

– The Off-Grid factory
